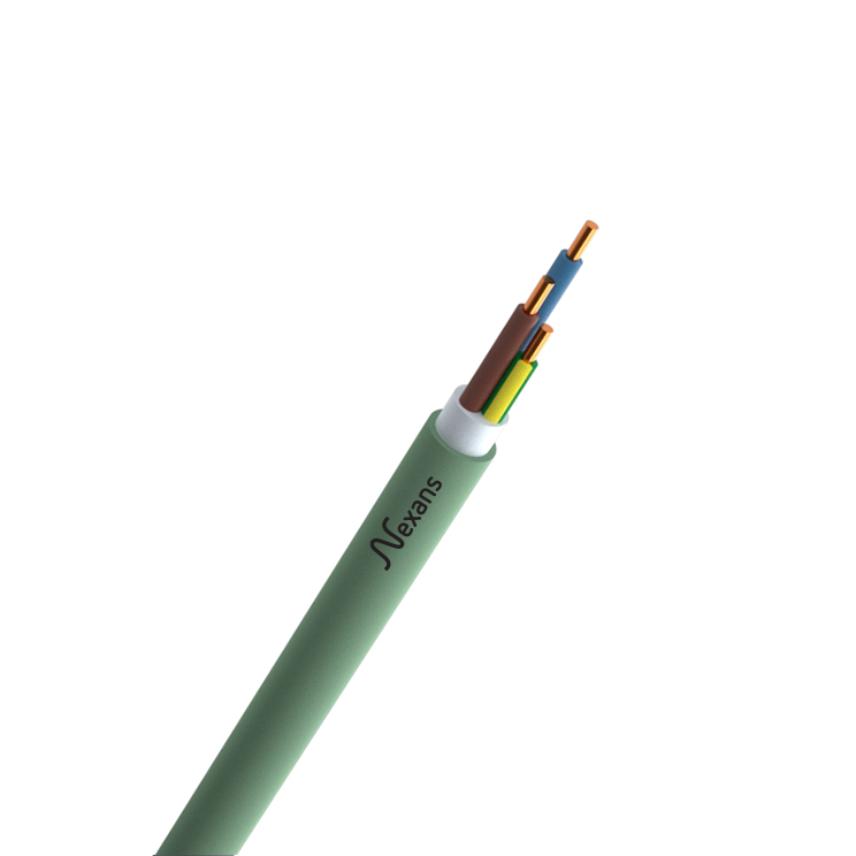

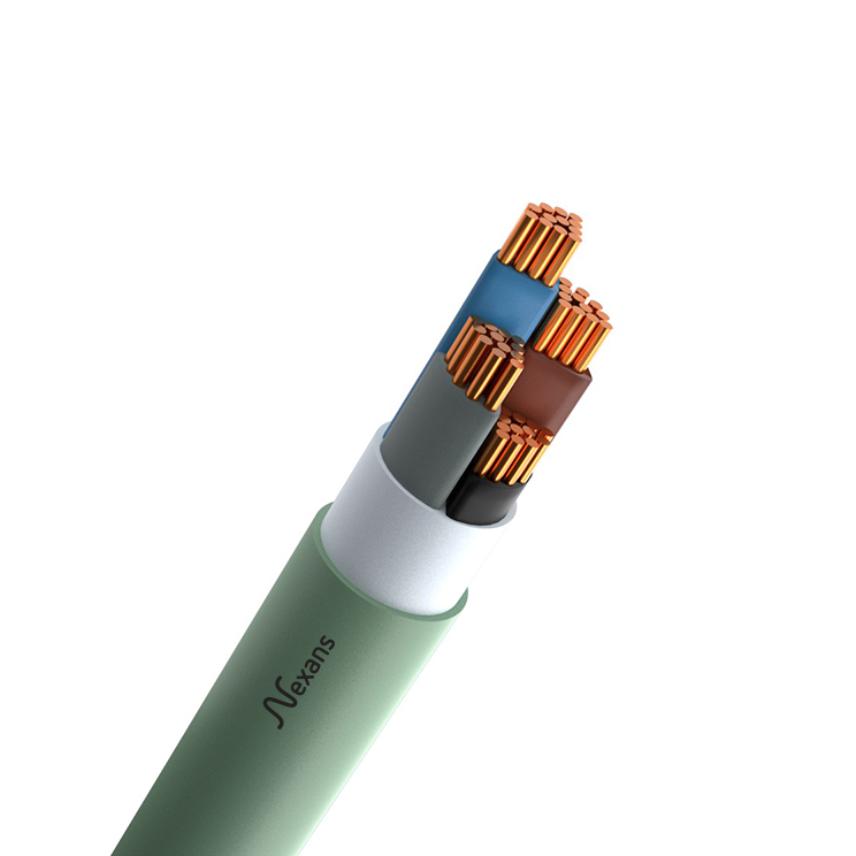

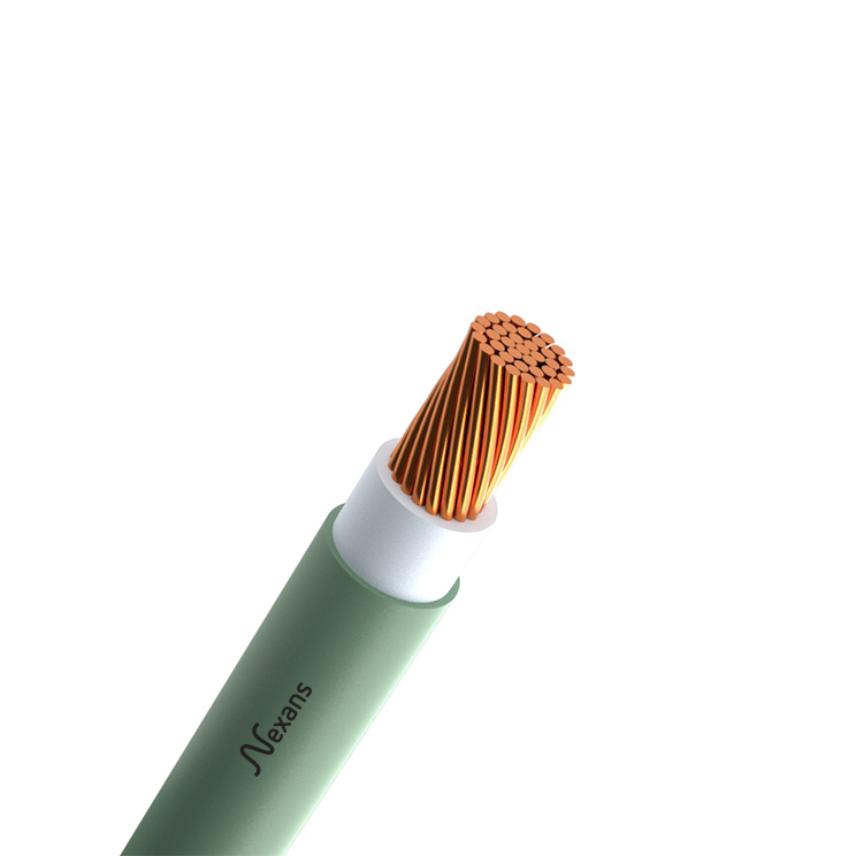

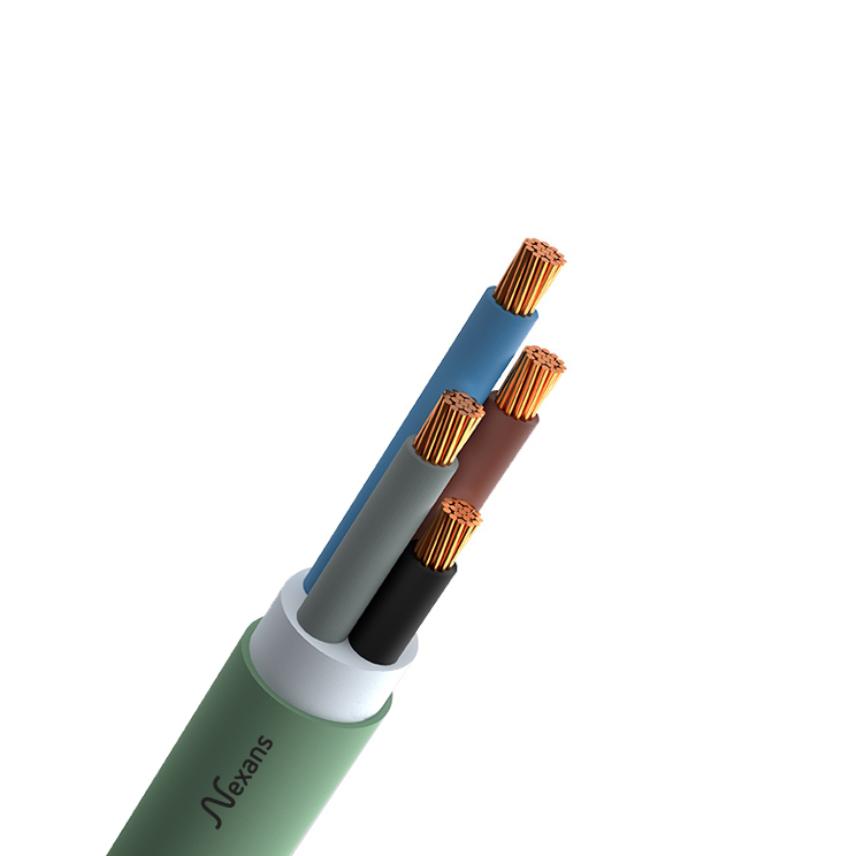

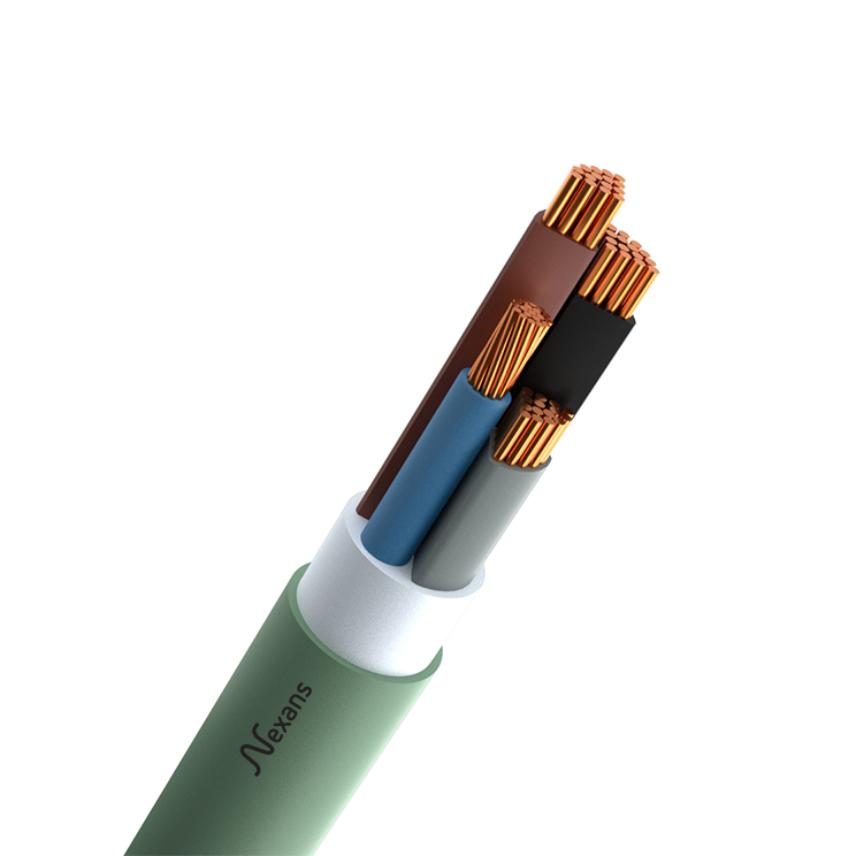

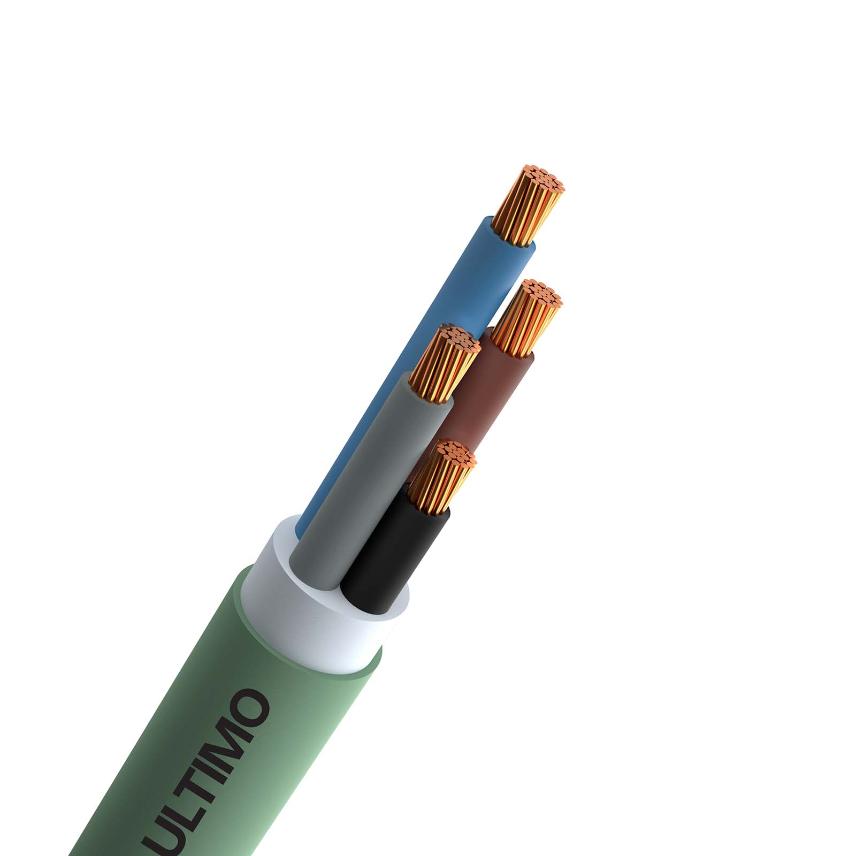

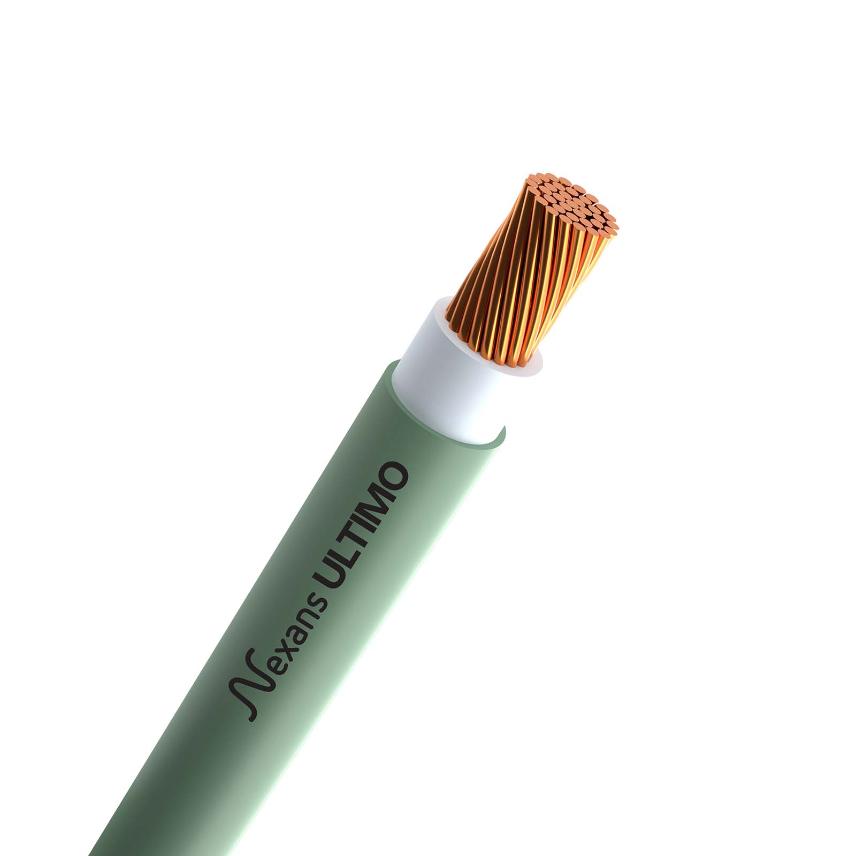

ALSECURE® XGB Cca 0,6/1kV
ALSECURE® XGB Cca 0,6/1kV
ALSECURE XGB Cca is an installation cable for low voltage installations of 0.6/1kV with halogen-free outer sheath. ALSECURE XGB Cca is used in domestic and industrial fixed installations. ALSECURE XGB Cca can be used both indoors and outdoors. ALSECURE XGB Cca can also be placed underground in a well-draining tube. The cable is suitable for use at ambient temperatures between -20°C and + 80°C.
ALSECURE XGB Cca has fire reaction class Cca-s1,d2,a1 according to EN 50575 and may be installed in bundle or side by side according to AREI/RGIE. The cable is also suited for areas where AREI/RGIE imposes s1 a1.
Alsecure XGB Cca 2x1.5
Nexans ref. 10537742
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 23 A
- Length: - m
Alsecure XGB Cca 2x1.5 B500 P2km
Nexans ref. 10542908
- Packaging: Drum (500m)
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 23 A
- Length: 500 m
Alsecure XGB Cca 2x1.5 R100 P4.2km
Nexans ref. 10542957
- Packaging: Ring (100m)
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 23 A
- Length: 100 m
Alsecure XGB Cca 3G1.5
Nexans ref. 10537532
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 23 A
- Length: - m
Alsecure XGB Cca 3G1.5 R100 P4.2km
Nexans ref. 10537835
- Packaging: Ring (100m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 23 A
- Length: 100 m
Alsecure XGB Cca 3G1.5 D500 P2km
Nexans ref. 10537837
- Packaging: Drum (500m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 23 A
- Length: 500 m
Alsecure XGB Cca 3x1.5
Nexans ref. 10537878
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 23 A
- Length: - m
Alsecure XGB Cca 3G1.5 D1000 P2km
Nexans ref. 10540645
- Packaging: Drum (1000m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 23 A
- Length: 1000 m
Alsecure XGB Cca 3G1.5 B4000
Nexans ref. 10544503
- Packaging: Drum (4000m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 23 A
- Length: 4000 m
Alsecure XGB Cca 4G1.5
Nexans ref. 10537666
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 23 A
- Length: - m
Alsecure XGB Cca 4x1.5
Nexans ref. 10537831
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 23 A
- Length: - m
Alsecure XGB Cca 4G1.5 R100 P3.6km
Nexans ref. 10542853
- Packaging: Ring (100m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 23 A
- Length: 100 m
Alsecure XGB Cca 4G1.5 B500 P2km
Nexans ref. 10542998
- Packaging: Drum (500m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 23 A
- Length: 500 m
Alsecure XGB Cca 5G1.5
Nexans ref. 10537668
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 23 A
- Length: - m
Alsecure XGB Cca 5G1.5 R100 P3km
Nexans ref. 10537891
- Packaging: Ring (100m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 23 A
- Length: 100 m
Alsecure XGB Cca 5G1.5 D500 P2km
Nexans ref. 10537876
- Packaging: Drum (500m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 23 A
- Length: 500 m
Alsecure XGB Cca 5G1.5 B2000
Nexans ref. 10544544
- Packaging: Drum (2000m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 23 A
- Length: 2000 m
Alsecure XGB Cca 7G1.5
Nexans ref. 10537740
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 7
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 23 A
- Length: - m
Alsecure XGB Cca 9G1.5
Nexans ref. 10539580
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 9
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 23 A
- Length: - m
Alsecure XGB Cca 10G1.5
Nexans ref. 10537765
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 10
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 14 A
- Length: - m
Alsecure XGB Cca 12G1.5
Nexans ref. 10537767
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 12
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 14 A
- Length: - m
Alsecure XGB Cca 14G1.5
Nexans ref. 10537758
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 14
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 23 A
- Length: - m
Alsecure XGB Cca 19G1.5
Nexans ref. 10537764
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 19
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 23 A
- Length: - m
Alsecure XGB Cca 21G1.5
Nexans ref. 10537675
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 21
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 10 A
- Length: - m
Alsecure XGB Cca 24G1.5
Nexans ref. 10537677
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 24
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 10 A
- Length: - m
Alsecure XGB Cca 24x1.5
Nexans ref. 10563249
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 24
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 10 A
- Length: - m
Alsecure XGB Cca 30G1.5
Nexans ref. 10537751
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 30
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 8 A
- Length: - m
Alsecure XGB Cca 37G1.5
Nexans ref. 10537363
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 37
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 8 A
- Length: - m
Alsecure XGB Cca 40G1.5
Nexans ref. 10537756
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 40
- Conductor cross-section: 1.5 mm²
- Permissible current rating in open air: 8 A
- Length: - m
Alsecure XGB Cca 2x2.5
Nexans ref. 10537684
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 32 A
- Length: - m
Alsecure XGB Cca 3G2.5
Nexans ref. 10537436
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 36 A
- Length: - m
Alsecure XGB Cca 3x2.5
Nexans ref. 10537744
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 32 A
- Length: - m
Alsecure XGB Cca 3G2.5 R100 P3.6km
Nexans ref. 10537834
- Packaging: Ring (100m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 36 A
- Length: 100 m
Alsecure XGB Cca 3G2.5 D500 P2km
Nexans ref. 10537838
- Packaging: Drum (500m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 36 A
- Length: 500 m
Alsecure XGB Cca 3G2.5 D1000 P2km
Nexans ref. 10540641
- Packaging: Drum (1000m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 36 A
- Length: 1000 m
Alsecure XGB Cca 3G2.5 B4000
Nexans ref. 10544541
- Packaging: Drum (4000m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 36 A
- Length: 4000 m
Alsecure XGB Cca 0.6/1kV 3G2.5 B5000 Easy Strippable
Nexans ref. 10577527
- Packaging: Drum (5000m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 36 A
- Length: 5000 m
Alsecure XGB Cca 4G2.5
Nexans ref. 10537461
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 32 A
- Length: - m
Alsecure XGB Cca 4x2.5
Nexans ref. 10537710
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 32 A
- Length: - m
Alsecure XGB Cca 4G2.5 B500 P2km
Nexans ref. 10542988
- Packaging: Drum (500m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 32 A
- Length: 500 m
Alsecure XGB Cca 4G2.5 R100 P3km
Nexans ref. 10542981
- Packaging: Ring (100m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 32 A
- Length: 100 m
Alsecure XGB Cca 5G2.5
Nexans ref. 10537437
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 32 A
- Length: - m
Alsecure XGB Cca 5G2.5 R100 P2.4km
Nexans ref. 10537892
- Packaging: Ring (100m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 32 A
- Length: 100 m
Alsecure XGB Cca 5G2.5 D500 P2km
Nexans ref. 10537877
- Packaging: Drum (500m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 32 A
- Length: 500 m
Alsecure XGB Cca 5G2.5 B2000
Nexans ref. 10544548
- Packaging: Drum (2000m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 32 A
- Length: 2000 m
Alsecure XGB Cca 5G2.5 D1000 P1km
Nexans ref. 10540499
- Packaging: Drum (1000m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 32 A
- Length: 1000 m
Alsecure XGB Cca 7G2.5
Nexans ref. 10537741
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 7
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 32 A
- Length: - m
Alsecure XGB Cca 9G2.5
Nexans ref. 10539531
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 9
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 20 A
- Length: - m
Alsecure XGB Cca 10G2.5
Nexans ref. 10537362
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 10
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 20 A
- Length: - m
Alsecure XGB Cca 12G2.5
Nexans ref. 10537770
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 12
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 20 A
- Length: - m
Alsecure XGB Cca 19G2.5
Nexans ref. 10537761
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 19
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 32 A
- Length: - m
Alsecure XGB Cca 24G2.5
Nexans ref. 10537700
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 24
- Conductor cross-section: 2.5 mm²
- Permissible current rating in open air: 20 A
- Length: - m
Alsecure XGB Cca 2x4
Nexans ref. 10539534
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 4 mm²
- Permissible current rating in open air: 42 A
- Length: - m
Alsecure XGB Cca 3G4
Nexans ref. 10537506
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 4 mm²
- Permissible current rating in open air: 42 A
- Length: - m
Alsecure XGB Cca 3x4
Nexans ref. 10537830
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 4 mm²
- Permissible current rating in open air: 42 A
- Length: - m
Alsecure XGB Cca 4G4
Nexans ref. 10537507
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 4 mm²
- Permissible current rating in open air: 42 A
- Length: - m
Alsecure XGB Cca 4x4
Nexans ref. 10537833
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 4 mm²
- Permissible current rating in open air: 42 A
- Length: - m
Alsecure XGB Cca 5G4
Nexans ref. 10537530
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 4 mm²
- Permissible current rating in open air: 42 A
- Length: - m
Alsecure XGB Cca 5G4 R100 P1.5km
Nexans ref. 10549198
- Packaging: Ring (100m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 4 mm²
- Permissible current rating in open air: 42 A
- Length: 100 m
Alsecure XGB Cca 5G4 R50 P1.5km
Nexans ref. 10549197
- Packaging: Ring (50m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 4 mm²
- Permissible current rating in open air: 42 A
- Length: 50 m
Alsecure XGB Cca 5G4 B1000 P1km
Nexans ref. 10557133
- Packaging: Drum (1000m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 4 mm²
- Permissible current rating in open air: 42 A
- Length: 1000 m
Alsecure XGB Cca 0.6/1kV 5G4 B3000 Easy Strippable
Nexans ref. 10577613
- Packaging: Drum (3000m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 4 mm²
- Permissible current rating in open air: 42 A
- Length: 3000 m
Alsecure XGB Cca 2x6
Nexans ref. 10537655
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 6 mm²
- Permissible current rating in open air: 54 A
- Length: - m
Alsecure XGB Cca 3G6
Nexans ref. 10537669
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 6 mm²
- Permissible current rating in open air: 54 A
- Length: - m
Alsecure XGB Cca 3x6
Nexans ref. 10537659
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 6 mm²
- Permissible current rating in open air: 54 A
- Length: - m
Alsecure XGB Cca 4G6
Nexans ref. 10537468
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 6 mm²
- Permissible current rating in open air: 54 A
- Length: - m
Alsecure XGB Cca 4x6
Nexans ref. 10537712
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 6 mm²
- Permissible current rating in open air: 54 A
- Length: - m
Alsecure XGB Cca 5G6
Nexans ref. 10537452
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 6 mm²
- Permissible current rating in open air: 54 A
- Length: - m
Alsecure XGB Cca 5G6 R100 P1.2km
Nexans ref. 10549210
- Packaging: Ring (100m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 6 mm²
- Permissible current rating in open air: 54 A
- Length: 100 m
Alsecure XGB Cca 5G6 R50 P1.2km
Nexans ref. 10549199
- Packaging: Ring (50m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 6 mm²
- Permissible current rating in open air: 54 A
- Length: 50 m
Alsecure XGB Cca 5G6 B500 P0.5km
Nexans ref. 10557113
- Packaging: Drum (500m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 6 mm²
- Permissible current rating in open air: 54 A
- Length: 500 m
Alsecure XGB Cca 5G6 B1000 P1km
Nexans ref. 10557130
- Packaging: Drum (1000m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 6 mm²
- Permissible current rating in open air: 54 A
- Length: 1000 m
Alsecure XGB Cca 0.6/1kV 5G6 B3000 Easy Strippable
Nexans ref. 10577528
- Packaging: Drum (3000m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 6 mm²
- Permissible current rating in open air: 54 A
- Length: 3000 m
Alsecure XGB Cca 2x10
Nexans ref. 10537743
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 10 mm²
- Permissible current rating in open air: 75 A
- Length: - m
Alsecure XGB Cca 3G10
Nexans ref. 10537717
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 10 mm²
- Permissible current rating in open air: 75 A
- Length: - m
Alsecure XGB Cca 3x10
Nexans ref. 10537879
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 10 mm²
- Permissible current rating in open air: 75 A
- Length: - m
Alsecure XGB Cca 4G10
Nexans ref. 10537505
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 10 mm²
- Permissible current rating in open air: 75 A
- Length: - m
Alsecure XGB Cca 4x10
Nexans ref. 10537832
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 10 mm²
- Permissible current rating in open air: 75 A
- Length: - m
Alsecure XGB Cca 4x10 R50 P1km
Nexans ref. 10549332
- Packaging: Ring (50m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 10 mm²
- Permissible current rating in open air: 75 A
- Length: 50 m
Alsecure XGB Cca 4x10 B500 P0.5km
Nexans ref. 10557161
- Packaging: Drum (500m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 10 mm²
- Permissible current rating in open air: 75 A
- Length: 500 m
XGB Cca 0.6/1kV 4G10 easy strippable :
Nexans ref. 10575245
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 10 mm²
- Permissible current rating in open air: 75 A
- Length: - m
XGB Cca 0.6/1kV 4G10 easy strippable :
Nexans ref.
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 10 mm²
- Permissible current rating in open air: 75 A
- Length: - m
Alsecure XGB Cca 0.6/1kV 4X10 B3000 Easy Strippable
Nexans ref. 10577612
- Packaging: Drum (3000m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 10 mm²
- Permissible current rating in open air: 75 A
- Length: 3000 m
XGB Cca 0.6/1kV 4x10 B1000
Nexans ref. 10581516
- Packaging: Drum (1000m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 10 mm²
- Permissible current rating in open air: 75 A
- Length: 1000 m
Alsecure XGB Cca 5G10
Nexans ref. 10537681
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 10 mm²
- Permissible current rating in open air: 75 A
- Length: - m
Alsecure XGB Cca 5G10 R50 P0.75km
Nexans ref. 10549313
- Packaging: Ring (50m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 10 mm²
- Permissible current rating in open air: 75 A
- Length: 50 m
Alsecure XGB Cca 5G10 B1000
Nexans ref. 10557135
- Packaging: Drum (1000m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 10 mm²
- Permissible current rating in open air: 75 A
- Length: 1000 m
Alsecure XGB Cca 0.6/1kV 5G10 B2000 Easy Strippable
Nexans ref. 10577529
- Packaging: Drum (2000m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 10 mm²
- Permissible current rating in open air: 75 A
- Length: 2000 m
Alsecure XGB Cca 1x16
Nexans ref. 10535433
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 1
- Conductor cross-section: 16 mm²
- Permissible current rating in open air: - A
- Length: - m
Alsecure XGB Cca 2x16
Nexans ref. 10537569
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 16 mm²
- Permissible current rating in open air: 100 A
- Length: - m
Alsecure XGB Cca 3x16
Nexans ref. 10537615
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 16 mm²
- Permissible current rating in open air: 100 A
- Length: - m
Alsecure XGB Cca 4x16
Nexans ref. 10537418
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 16 mm²
- Permissible current rating in open air: 100 A
- Length: - m
Alsecure XGB Cca 4G16
Nexans ref. 10537616
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 16 mm²
- Permissible current rating in open air: 100 A
- Length: - m
Alsecure XGB Cca 5G16
Nexans ref. 10537416
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 16 mm²
- Permissible current rating in open air: 100 A
- Length: - m
Alsecure XGB Cca 1x25
Nexans ref. 10537628
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 1
- Conductor cross-section: 25 mm²
- Permissible current rating in open air: - A
- Length: - m
Alsecure XGB Cca 1x25 B800
Nexans ref. 10550244
- Packaging: Drum (800m)
- With Green/Yellow core: No
- Number of cores: 1
- Conductor cross-section: 25 mm²
- Permissible current rating in open air: - A
- Length: 800 m
Alsecure XGB Cca 3x25
Nexans ref. 10537620
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 25 mm²
- Permissible current rating in open air: 127 A
- Length: - m
Alsecure XGB Cca 4G25
Nexans ref. 10537531
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 25 mm²
- Permissible current rating in open air: 127 A
- Length: - m
Alsecure XGB Cca 4x25
Nexans ref. 10537581
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 25 mm²
- Permissible current rating in open air: 127 A
- Length: - m
Alsecure XGB Cca 5G25
Nexans ref. 10537417
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 25 mm²
- Permissible current rating in open air: 127 A
- Length: - m
Alsecure XGB Cca 1x35
Nexans ref. 10537629
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 1
- Conductor cross-section: 35 mm²
- Permissible current rating in open air: - A
- Length: - m
Alsecure XGB Cca 3x35
Nexans ref. 10537580
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 35 mm²
- Permissible current rating in open air: 157 A
- Length: - m
Alsecure XGB Cca 4x35
Nexans ref. 10537568
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 35 mm²
- Permissible current rating in open air: 157 A
- Length: - m
Alsecure XGB Cca 4G35
Nexans ref. 10537617
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 35 mm²
- Permissible current rating in open air: 157 A
- Length: - m
Alsecure XGB Cca 3x35+1G16
Nexans ref. 10537621
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 35 mm²
- Permissible current rating in open air: 157 A
- Length: - m
Alsecure XGB Cca 3x35+1x16
Nexans ref. 10537701
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 35 mm²
- Permissible current rating in open air: 157 A
- Length: - m
Alsecure XGB Cca 1x50
Nexans ref. 10537692
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 1
- Conductor cross-section: 50 mm²
- Permissible current rating in open air: - A
- Length: - m
Alsecure XGB Cca 3x50
Nexans ref. 10537622
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 50 mm²
- Permissible current rating in open air: 192 A
- Length: - m
Alsecure XGB Cca 4G50
Nexans ref. 10537413
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 50 mm²
- Permissible current rating in open air: 192 A
- Length: - m
Alsecure XGB Cca 4x50
Nexans ref. 10537503
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 50 mm²
- Permissible current rating in open air: 192 A
- Length: - m
Alsecure XGB Cca 3x50+1x25
Nexans ref. 10537703
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 50 mm²
- Permissible current rating in open air: 192 A
- Length: - m
Alsecure XGB Cca 3x50+1G25
Nexans ref. 10537704
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 50 mm²
- Permissible current rating in open air: 192 A
- Length: - m
Alsecure XGB Cca 1x70
Nexans ref. 10537696
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 1
- Conductor cross-section: 70 mm²
- Permissible current rating in open air: - A
- Length: - m
Alsecure XGB Cca 3x70
Nexans ref. 10537610
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 70 mm²
- Permissible current rating in open air: 246 A
- Length: - m
Alsecure XGB Cca 4x70
Nexans ref. 10537614
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 70 mm²
- Permissible current rating in open air: 246 A
- Length: - m
Alsecure XGB Cca 4G70
Nexans ref. 10537618
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 70 mm²
- Permissible current rating in open air: 246 A
- Length: - m
Alsecure XGB Cca 3x70+1x35
Nexans ref. 10537705
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 70 mm²
- Permissible current rating in open air: 246 A
- Length: - m
Alsecure XGB Cca 3x70+1G35
Nexans ref. 10537706
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 70 mm²
- Permissible current rating in open air: 246 A
- Length: - m
Alsecure XGB Cca 1x95
Nexans ref. 10537611
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 1
- Conductor cross-section: 95 mm²
- Permissible current rating in open air: - A
- Length: - m
Alsecure XGB Cca 3x95
Nexans ref. 10537556
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 95 mm²
- Permissible current rating in open air: 299 A
- Length: - m
Alsecure XGB Cca 4x95
Nexans ref. 10537533
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 95 mm²
- Permissible current rating in open air: 299 A
- Length: - m
Alsecure XGB Cca 4G95
Nexans ref. 10537566
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 95 mm²
- Permissible current rating in open air: 299 A
- Length: - m
Alsecure XGB Cca 3x95+1x50
Nexans ref. 10537708
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 95 mm²
- Permissible current rating in open air: 299 A
- Length: - m
Alsecure XGB Cca 3x95+1G50
Nexans ref. 10537709
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 95 mm²
- Permissible current rating in open air: 299 A
- Length: - m
Alsecure XGB Cca 1x120
Nexans ref. 10537582
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 1
- Conductor cross-section: 120 mm²
- Permissible current rating in open air: - A
- Length: - m
Alsecure XGB Cca 3x120
Nexans ref. 10537613
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 120 mm²
- Permissible current rating in open air: 346 A
- Length: - m
Alsecure XGB Cca 4x120
Nexans ref. 10537534
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 120 mm²
- Permissible current rating in open air: 346 A
- Length: - m
Alsecure XGB Cca 4G120
Nexans ref. 10537619
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 120 mm²
- Permissible current rating in open air: 346 A
- Length: - m
Alsecure XGB Cca 3x120+1x70
Nexans ref. 10537707
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 120 mm²
- Permissible current rating in open air: 346 A
- Length: - m
Alsecure XGB Cca 3x120+1G70
Nexans ref. 10537731
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 120 mm²
- Permissible current rating in open air: 346 A
- Length: - m
Alsecure XGB Cca 1x150
Nexans ref. 10537567
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 1
- Conductor cross-section: 150 mm²
- Permissible current rating in open air: - A
- Length: - m
Alsecure XGB Cca 3x150
Nexans ref. 10537557
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 150 mm²
- Permissible current rating in open air: 399 A
- Length: - m
Alsecure XGB Cca 4x150
Nexans ref. 10537558
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 150 mm²
- Permissible current rating in open air: 399 A
- Length: - m
Alsecure XGB Cca 4G150
Nexans ref. 10537625
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 150 mm²
- Permissible current rating in open air: 399 A
- Length: - m
Alsecure XGB Cca 3x150+1x70
Nexans ref. 10537733
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 150 mm²
- Permissible current rating in open air: 399 A
- Length: - m
Alsecure XGB Cca 3x150+1G70
Nexans ref. 10537734
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 150 mm²
- Permissible current rating in open air: 399 A
- Length: - m
Alsecure XGB Cca 1x185
Nexans ref. 10537584
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 1
- Conductor cross-section: 185 mm²
- Permissible current rating in open air: - A
- Length: - m
Alsecure XGB Cca 3x185
Nexans ref. 10537623
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 185 mm²
- Permissible current rating in open air: 456 A
- Length: - m
Alsecure XGB Cca 4G185
Nexans ref. 10537612
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 185 mm²
- Permissible current rating in open air: 456 A
- Length: - m
Alsecure XGB Cca 4x185
Nexans ref. 10537627
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 185 mm²
- Permissible current rating in open air: 456 A
- Length: - m
Alsecure XGB Cca 3x185+1x95
Nexans ref. 10537736
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 185 mm²
- Permissible current rating in open air: 456 A
- Length: - m
Alsecure XGB Cca 3x185+1G95
Nexans ref. 10537737
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 185 mm²
- Permissible current rating in open air: 456 A
- Length: - m
Alsecure XGB Cca 1x240
Nexans ref. 10535435
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 1
- Conductor cross-section: 240 mm²
- Permissible current rating in open air: - A
- Length: - m
Alsecure XGB Cca 3x240
Nexans ref. 10537624
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 240 mm²
- Permissible current rating in open air: 538 A
- Length: - m
Alsecure XGB Cca 4x240
Nexans ref. 10537535
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 240 mm²
- Permissible current rating in open air: 538 A
- Length: - m
Alsecure XGB Cca 4G240
Nexans ref. 10537565
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 240 mm²
- Permissible current rating in open air: 538 A
- Length: - m
Alsecure XGB Cca 3x240+1x120
Nexans ref. 10537738
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 240 mm²
- Permissible current rating in open air: 538 A
- Length: - m
Alsecure XGB Cca 3x240+1G120
Nexans ref. 10537750
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 240 mm²
- Permissible current rating in open air: 538 A
- Length: - m
Alsecure XGB Cca 1x300
Nexans ref. 10545628
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 1
- Conductor cross-section: 300 mm²
- Permissible current rating in open air: - A
- Length: - m
Alsecure XGB Cca 4x300
Nexans ref. 10545627
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 300 mm²
- Permissible current rating in open air: 620 A
- Length: - m
Description
Description
Standards
-
NationalNBN HD 604 Part 5/Sect.L
Design
- Copper core, solid (Class 1) or stranded (Class 2) depending on cross-section
- Cross-linked polyethylene (XLPE) insulation (X)
- Filling compound or tape halogen-free
- Outer sheath in halogen-free thermoplastic material (G) - Colour: GREEN
Installation
- In cable conduit
- In cable duct
- Embedded in concrete, cement or walls
- In open air
- In industries
- In houses
- Underground installation is allowed provided the cable is installed in a sufficiently drained tube
Note
- Operating temperatures down to -20°C are permitted, provided that no mechanical forces are applied and the cable is not moved.
- UV-resistance according to EN 50289-4-17 Method A (duration test: 720h) establishing ALSECURE XGB is particularly fitted for our Belgian climate.
More on UV resistance
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper
Insulation
XLPE (chemical)
Material of filler / inner sheath
Compound or tape
Outer sheath
Halogen free polyolefin
Sheath colour
Green
Halogen free
Yes
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0,6/1 kV
Test voltage
4 kV
Mechanical characteristics
Mechanical characteristics
Impact resistance Max (IEC 30364-5-51)
6 J
Usage characteristics
Usage characteristics
Field of application
Indoor, Outdoor
U.V resistance
EN 50289-4-17 method A, for 720h
Max. conductor temperature in service
90 °C
Operating temperature, range
-20 ... 80 °C
Minimum installation temperature
0 °C
Resistance to vibrations
Moderate
Metric marking
Continuous
Resources
Resources
Find a Distributor
Waiting…
Related products
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
