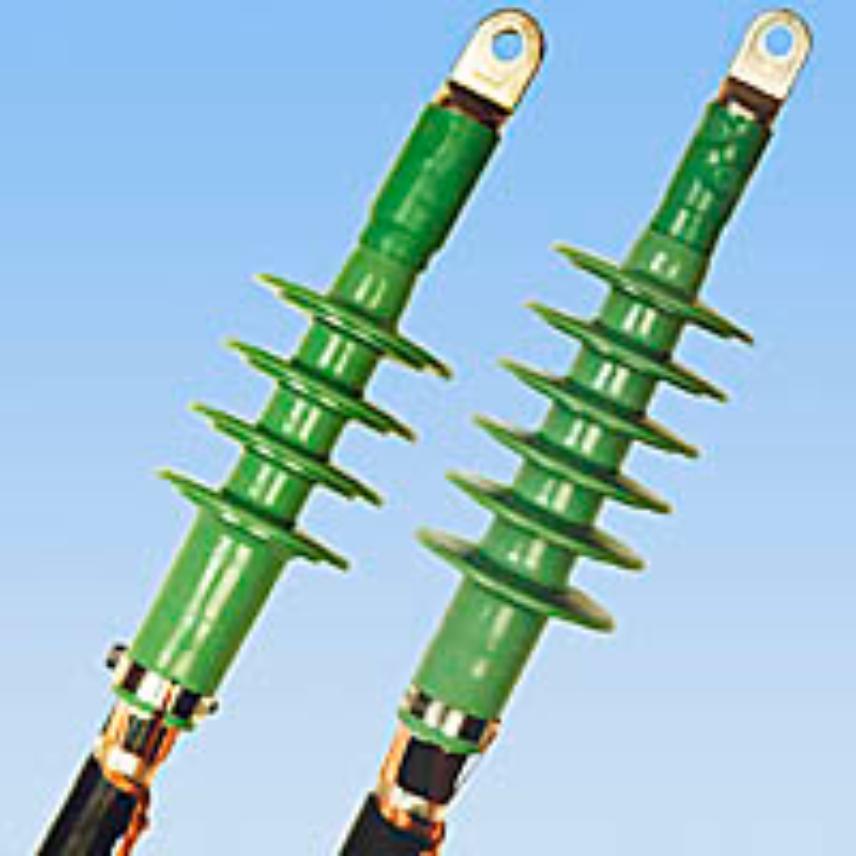

AFN - Outdoor slip-on termination
Description
Description
Standards
-
TestHD 629.1 S2
Application
Provides a simple and quick methos of stress relieving on screened polymeric cables.
This product is also part of our Windlink® offer dedicated to wind turbines.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper
Insulation
XLPE or ERP
Technology
Slip-0n
Dimensional characteristics
Dimensional characteristics
Conductor cross-section, range
25 ... 70 mm²
Diameter over insulation, range
12.7 ... 58 mm
Approximate weight per set
- kg
Conductor cross-section for 12 kV, range
25 ... 1200 mm²
Number of cores
1
Number of sheds
4
Electrical characteristics
Electrical characteristics
Maximum operating voltage
52 kV
Flashover distance
650 mm
Impulse voltage
200 kV
Usage characteristics
Usage characteristics
Field of application
Outdoor
Resources
Resources
Documentation
AFN catalogue page
pdf — 428.8 kB
AFN installation instruction
pdf — 910.7 kB
