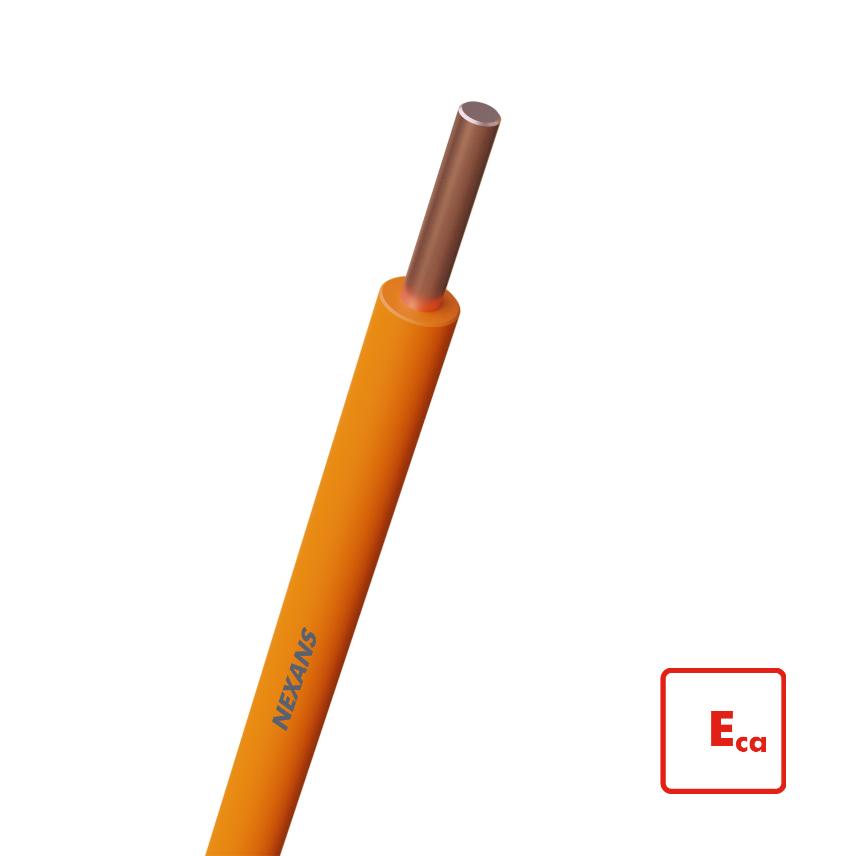

H07V-U Eca 2.5 ORANGE D100 P6km
H07V-U Eca 2.5 ORANGE D100 P6km
H07V-U Eca and H07V-R Eca are standard installation wires insulated with PVC for 450/750V AC or 1kV DC. H07V-U Eca has a solid class 1 core, H07V-R Eca has a stranded class 2 core. H07V-U/R Eca is intended for protected fixed domestic and industrial installations. Installation may be in pipes or in closed gutters that are embedded in the wall or floor or on a surface. H07V-U/R Eca slides well and is therefore easy to pull into pipes. In addition, H07V-U/R Eca is easy to strip, making it quick to process. The wire can be loaded to a maximum wire temperature of 70°C. H07V-U Eca and H07V-R Eca comply with fire reaction class class Eca according to EN 50575. H07V-U Eca in sections 1.5 and 2.5 mm2 is also available in the moisture-resistant coloured VOBbox of length 100m.
Read more- Nexans ref. : 10533326
- EAN : 5413404304356
Description
Description
Standards
-
ProductEN 50525-2-31; IEC 60228
Application
- PVC-insulated conductors for fixed installations
- Domestic and industrial
- Panel wiring
- Rated voltage up to and including 450/750 V
Design
- Copper core, solid (U) or stranded (R)
- PVC insulating sheath
Installation
- In industries
- In houses
- Suitable for installation in electrical installation in conduits, pipes or similar closed systems - surface or flush mount
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
Other colours available upon request
Declaration of Performance
- Declaration of Performance n� : 1000211-BEBU
- Certification Date : 12/1/23
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : NB 2659
- Declared performance : Eca
