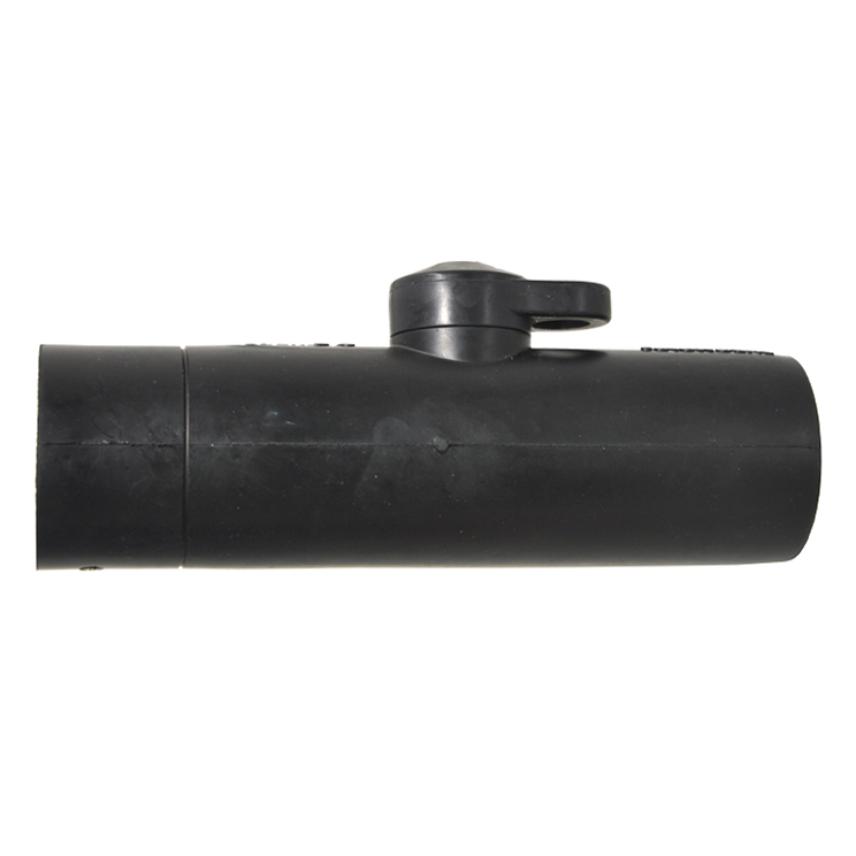

200SR - Interface A - Straight connector
200SR - Interface A - Straight connector
Up to 24 kV - 250 A
EUROMOLD separable connector
- Nexans ref. : 200SR
- EAN : 5115044000307
Description
Description
Standards
-
ProductCENELEC EN 50180
-
TestCENELEC HD 629.1
Application
Separable straight connector designed to connect polymeric insulated cable to equipment (transformers, switchgear, motors...).
Technical characteristics
- The thick conductive EPDM jacket provides a total safe to touch screen which ensures safety for personnel.
- Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.
Specifications and standards
The 200SR separable connector meets the requirements of CENELEC HD 629.1.
Design
Characteristics
Characteristics

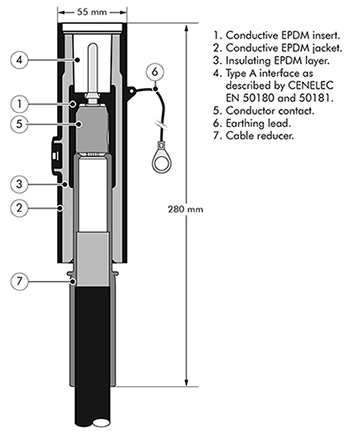

Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Selling & delivery Information
To order a kit of 3 elbow connectors, specify the type:
• for 12 kV applications: 3x (K200SR-12).
• for 17.5 kV applications: 3x (K200SR-12) for 25 up to 50 mm²
3x (K200SR-16) for 50 up to 95 mm².
• for 24 kV applications: 3x (K200SR-16).
EXAMPLE:
The cable is 24 kV, 50 mm² compact stranded aluminium with a diameter over core insulation of 20.5 mm and copper screen wires.
Order 3x (K200SR-16) elbow connector kit.
