K200DR - Interface A - Dead-end receptacle
K200DR - Interface A - Dead-end receptacle
For 12 kV or 24 kV
EUROMOLD dead-end receptacle
- EAN : 5415044024304
Description
Description
Standards
-
TestCENELEC HD 629.1
Application
Fits over a bushing with a type A interface to provide 'dead-end' facility.
Renders the assembly watertight.
Technical characteristics
- The thick conductive EPDM jacket provides a total safe to touch screen which ensures safety for personel.
- Each dead-end receptacle is tested for AC withstand and partial discharge prior to leaving the factory.

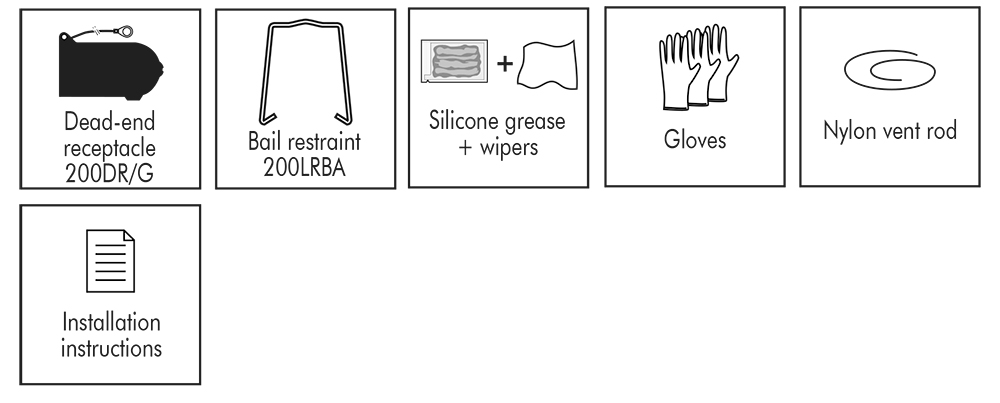

Kit contents
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Connector shape
Connector type
Outer cone
Conductor material
Technology
Slip-0n
Dimensional characteristics
Dimensional characteristics
Conductor cross-section, range
... mm²
Electrical characteristics
Electrical characteristics
Dielectric withstand voltage, 50Hz 1mn
55 kV
Impulse voltage
125 kV
Maximal partial discharge at 2Uo
10 pC
Rated Voltage Uo/U (Um)
12 / 20 (24) kV
Usage characteristics
Usage characteristics
Interface
A (250 A)
Resources
Resources
Documentation
200LR catalogue page
pdf — 520.1 kB
200LR installation instruction
pdf — 811.8 kB
