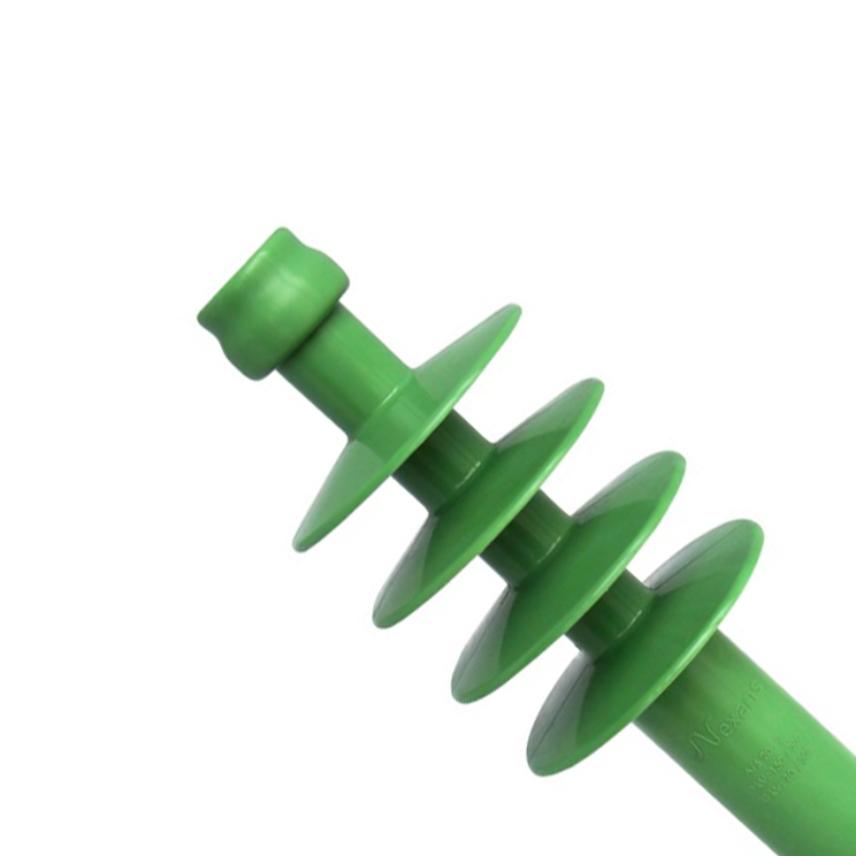

AFS - Slip-on outdoor termination
Description
Description
Standards
-
TestHD 629.1 S2
Application
AFS terminations are suitable for outdoor installation on polymeric insulated medium voltage cables with extruded easy strip conductive screen or bonded extruded conductive screen.This high-quality silicone termination covers a large range of cross-sections with just two sizes per voltage level.
Another benefit is the quick and easy assembly.
The conductor is connected with mechanical cable lugs. Available with additional splitting accessories for three-core cables.

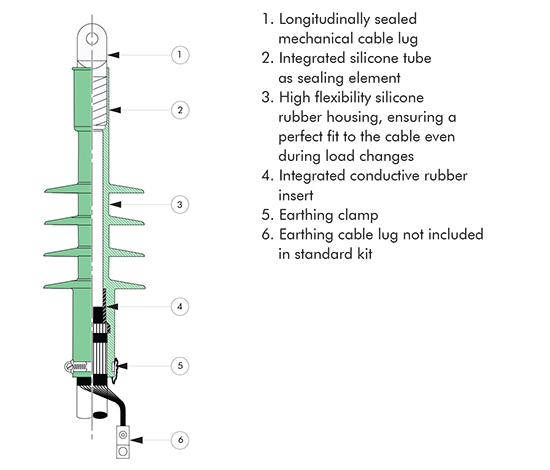

Design
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper or Aluminum
Insulation
XLPE or ERP
Technology
Slip-0n
Dimensional characteristics
Dimensional characteristics
Conductor cross-section, range
... mm²
Diameter over insulation, range
17 ... 35 mm
Approximate weight per set
- kg
Conductor cross-section for 12 kV, range
70 ... 300 mm²
Number of cores
1
Number of sheds
4
Electrical characteristics
Electrical characteristics
Maximum operating voltage
24 kV
Flashover distance
325 mm
Impulse voltage
125 kV
Usage characteristics
Usage characteristics
Field of application
Outdoor
