EAXeCWB 8,7/15 kV 1 x 400/35 np

Description

Description

Standards

  • Product
    13782-99HH; NBN HD 620 / 10B-A

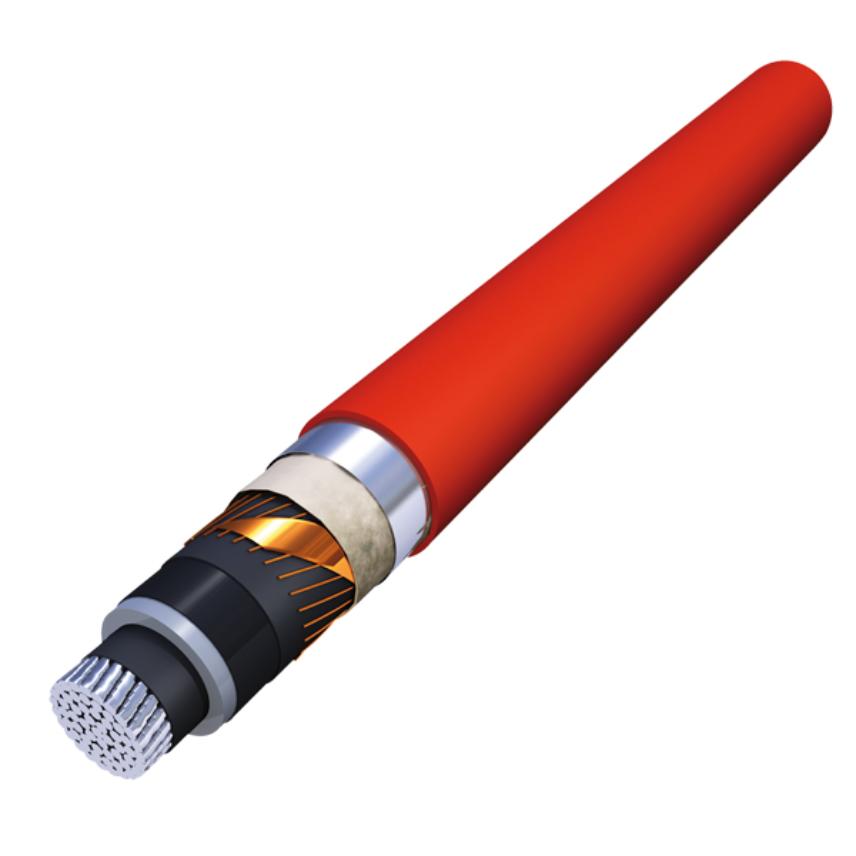

Design

  1. Aluminium conductor
  2. Semi-conducting XLPE extruded conductor screen
  3. XLPE extruded insulation
  4. Semi-conducting XLPE extruded conductor screen
  5. Semi-conduting swelling tape
  6. Copper wires screen + counter helix copper tape
  7. Swelling tape
  8. Aluminium tape bonded to the PE sheath (only for EAXeCeWB cables)
  9. Red PE oversheath

Installation

  • In cable channel
  • In tube
  • with or without protection
  • In industry
  • In open air

Halogen free construction on request

These cables are available on request in a halogen free version, i.e. EAXeCGB or EAXeCeGB. Contact us to obtain more information.

Cable construction with reduced insulation

We also offer cable constructions with reduced insulation thickness, according to NBN HD 620 / 10B-B, 10B-C or 10B-D. Do you have a specific project for this type of cable? Contact us and we'll look at how we can best help you.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Aluminum
Conductor shape
Round, stranded
Material of the inner semi-conductor
Semi-conducting compound
Insulation
Extruded XLPE compound
Material of the external semi-conductor
Semi-conducting compound
Screen
Copper wires + copper tape
Longitudinally watertight
Yes
Outer sheath
PE
Conductor flexibility
Stranded class 2

Dimensional characteristics

Dimensional characteristics

Number of cores
1
Conductor cross-section
400 mm²
Average insulation thickness
4.5 mm
Screen section
35 mm²
Average sheath thickness
3.3 mm
Minimum outer diameter
44.0 mm
Maximum outer diameter
50.0 mm
Approximate weight
2760 kg/km

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
8,7/15 kV
Maximum operating voltage
17.5 kV

Mechanical characteristics

Mechanical characteristics

Mechanical resistance to impacts
Good

Usage characteristics

Usage characteristics

Max. conductor temperature in service
90 °C
Short-circuit max. conductor temperature
250 °C
Weather resistance
Good
