ALSECURE® Plus PYROBELCA Rf1h30 (EmGGB-F2 / SmGGB-F2)
ALSECURE® Plus PYROBELCA Rf1h30 (EmGGB-F2 / SmGGB-F2)
ALSECURE Plus Pyrobelca EmGGB-F2 Rf1h30 is a fire resistant power cable for 0.6/1kV with functional integrity FR2 Rf1h30 according to NBN 713-020 Add.3. ALSECURE Plus Pyrobelca EmGGB-F2 Rf1h30 is used in circuits that supply vital or critical installations according to AREI/RGIE that absolutely must keep functioning in the event of a fire, such as sirens, emergency lighting, pumps, smoke extraction systems, etc. ALSECURE Plus Pyrobelca EmGGB-F2 Rf1h30 is halogen-free (SA, SD) and non-fire propagating (F2) according to NBN C 30-004.

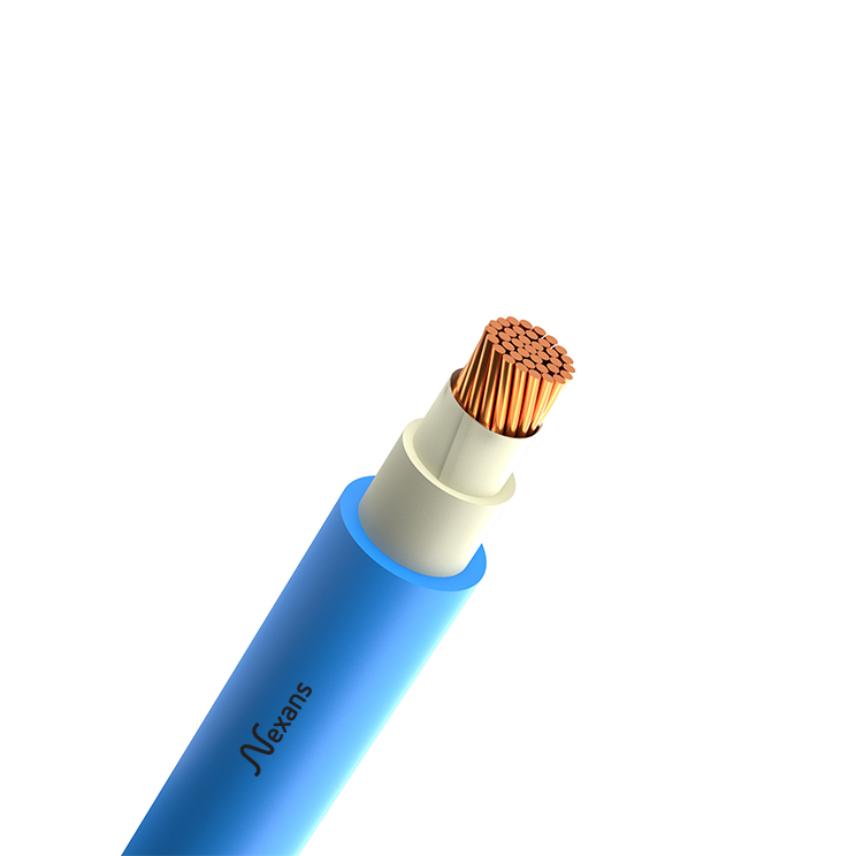

Read moreAlsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 1x120 mm²
Nexans ref. 10025386
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 1
- Conductor cross-section: 120 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 1x150 mm²
Nexans ref. 10025387
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 1
- Conductor cross-section: 150 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 1x185 mm²
Nexans ref. 10218642
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 1
- Conductor cross-section: 185 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 1x240 mm²
Nexans ref. 10212428
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 1
- Conductor cross-section: 240 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 1x300 mm²
Nexans ref. 10223376
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 1
- Conductor cross-section: 300 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 2x1,5 mm²
Nexans ref. 10001718
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 1.5 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 2x2,5 mm²
Nexans ref. 10001720
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 2.5 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 3G1,5 mm²
Nexans ref. 10001721
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 1.5 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 3G2,5 mm²
Nexans ref. 10001722
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 2.5 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 3G4 mm²
Nexans ref. 10224352
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 4 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 3G6 mm²
Nexans ref. 10224371
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 6 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 3x1,5 mm²
Nexans ref. 10001724
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 1.5 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 3x120 mm²
Nexans ref. 10228209
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 120 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 3x16 mm²
Nexans ref. 10228279
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 16 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 3x95 mm²
Nexans ref. 10570094
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 95 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 4G10 mm²
Nexans ref. 10224377
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 10 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 4G25 mm²
Nexans ref. 10001728
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 25 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 4G35 mm²
Nexans ref. 10001807
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 35 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 4G4 mm²
Nexans ref. 10212424
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 4 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 4G50 mm²
Nexans ref. 10001762
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 50 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 4G6 mm²
Nexans ref. 10224373
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 6 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 4G70 mm²
Nexans ref. 10001830
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 70 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 4G95 mm²
Nexans ref. 10001763
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 95 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 4x1,5 mm²
Nexans ref. 10001733
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 1.5 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 4x10 mm²
Nexans ref. 10509010 - Country ref. 10509010
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 10 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 4x16 mm²
Nexans ref. 10001732
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 16 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 4x25 mm²
Nexans ref. 10001734
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 25 mm²

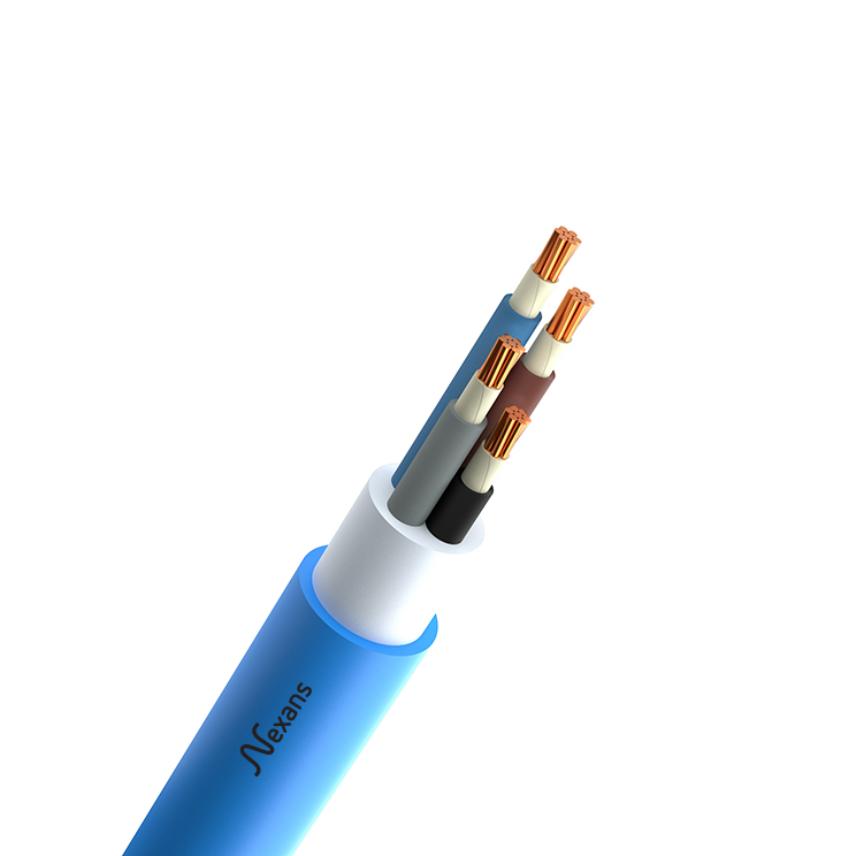

Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 4x35 mm²
Nexans ref. 10205656
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 35 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 4x50 mm²
Nexans ref. 10001765
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 50 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 4x70 mm²
Nexans ref. 10216351
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 70 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 4x95 mm²
Nexans ref. 10001766
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 95 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 5G1,5 mm²
Nexans ref. 10001738
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 1.5 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 5G10 mm²
Nexans ref. 10001737
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 10 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 5G16 mm²
Nexans ref. 10001825
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 16 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 5G2,5 mm²
Nexans ref. 10001739
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 2.5 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 5G25 mm²
Nexans ref. 10239107
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 25 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 5G35 mm²
Nexans ref. 10014810
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 35 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 5G4 mm²
Nexans ref. 10224353
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 4 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 5G50 mm²
Nexans ref. 10196505
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 50 mm²
Alsecure® Plus PYROBELCA EmGGB-F2 Rf1h30 5G6 mm²
Nexans ref. 10001741
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 6 mm²
Description
Description
Standards
-
ProductNBN C33-134
-
TestNBN 713-020
Design
- Copper core, solid (Class 1) or stranded (Class 2)
- Mica tapes
- Insulation in halogen-free thermoplastic material (G)
- Filling compound in halogen-free thermoplastic material
- Outer sheath in halogen-free thermoplastic material (G) - Colour: BLUE
Installation
Taking into account that the positioning and installation of these electrical cables and their fastenings must guarantee the functional integrity of the fire resistant cables, the following types of installation are permitted:
- In cable ducts
- On cable trays
- In open air, protected against direct sunlight
- In underground tube provided it's drained sufficiently
- In industries
- In houses
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper
Insulation
XLPE + Mica tape
Material of filler / inner sheath
Halogen free thermoplastic material
Outer sheath
Halogen free compound
Sheath colour
Blue
Halogen free
NBN C30-004 ST,SD,SA
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0,6/1 kV
Test voltage
4 kV
Mechanical characteristics
Mechanical characteristics
Impact resistance Max (IEC 30364-5-51)
6 J
Usage characteristics
Usage characteristics
Bending factor when laying
20 (xD)
Field of application
Indoor, Outdoor
Fire resistant
NBN 713-020 Add3 Rf 1h30
Fire retardant
EN 60332-3-24 (cat C) (NBN C 30-004 F2)
Max. conductor temperature in service
70 °C
Operating temperature, range
0 ... 60 °C
Resistance to vibrations
Moderate
Chemical resistance
Medium
Water proof
Temporary
