Nexans ALSECURE® PLUS / PREMIUM (300/500V)
Nexans ALSECURE® PLUS / PREMIUM (300/500V)

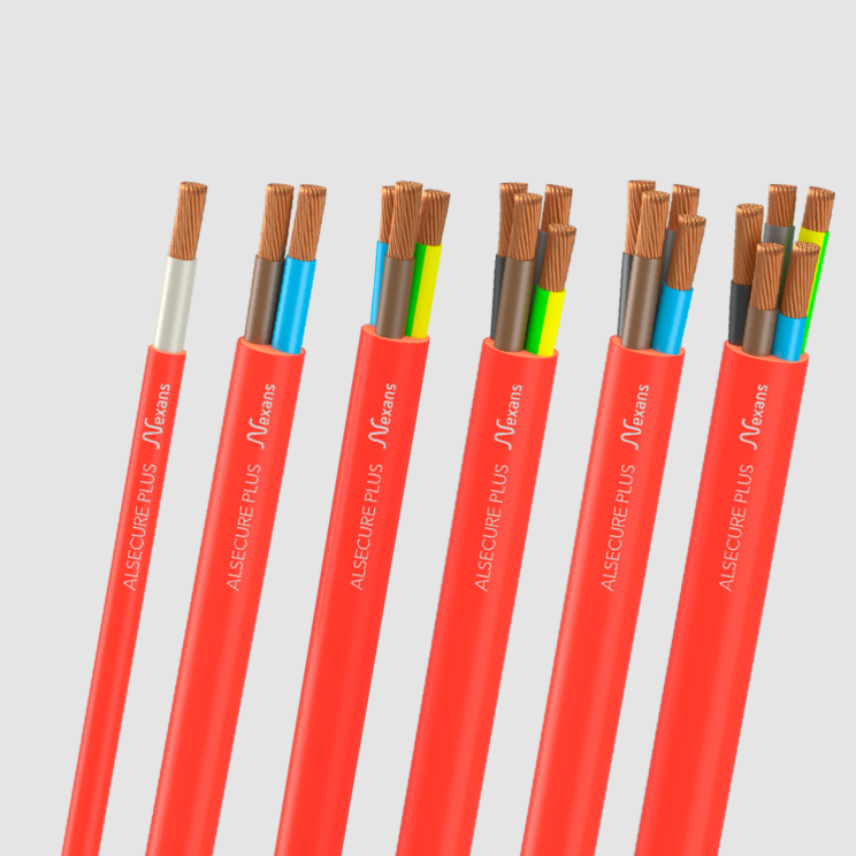

Halogen-free 300/500V rigid cables, fire-resistant CR1 C1 SECURE EFECTIS, with copper core and orange sheath. All ALSECURE PLUS cables are manufactured in France.
Read moreNexans ALSECURE® PLUS 1x120
Nexans ref. 10045396
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 1
- Conductor cross-section: 120 mm²
Nexans ALSECURE® PLUS 1x150
Nexans ref. 10045397
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 1
- Conductor cross-section: 150 mm²
Nexans ALSECURE® PLUS 1x185
Nexans ref. 10045398
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 1
- Conductor cross-section: 185 mm²
Nexans ALSECURE® PLUS 1x240
Nexans ref. 10045399
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 1
- Conductor cross-section: 240 mm²
Nexans ALSECURE® PLUS 1x35
Nexans ref. 10045392
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 1
- Conductor cross-section: 35 mm²
Nexans ALSECURE® PLUS 1x50
Nexans ref. 10045393
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 1
- Conductor cross-section: 50 mm²
Nexans ALSECURE® PLUS 1x70
Nexans ref. 10045394
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 1
- Conductor cross-section: 70 mm²
Nexans ALSECURE® PLUS 1x95
Nexans ref. 10045395
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 1
- Conductor cross-section: 95 mm²
Nexans ALSECURE® PLUS 2x6
Nexans ref. 10045370
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 2
- Conductor cross-section: 6 mm²
Nexans ALSECURE® PLUS 3G10
Nexans ref. 10045381
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 10 mm²
Nexans ALSECURE® PLUS 3G16
Nexans ref. 10045382
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 16 mm²
Nexans ALSECURE® PLUS 3G6
Nexans ref. 10045369
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 3
- Conductor cross-section: 6 mm²
Nexans ALSECURE® PLUS 3x25
Nexans ref. 10045378
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 25 mm²
Nexans ALSECURE® PLUS 3x6
Nexans ref. 10045371 - Country ref. 01272379
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 3
- Conductor cross-section: 6 mm²
Nexans ALSECURE® PLUS 4G10
Nexans ref. 10009349
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 10 mm²
Nexans ALSECURE® PLUS 4G16
Nexans ref. 10045384
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 16 mm²
Nexans ALSECURE® PLUS 4G25
Nexans ref. 10045385
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 25 mm²
Nexans ALSECURE® PLUS 4G35
Nexans ref. 10045386
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 35 mm²
Nexans ALSECURE® PLUS 4G6
Nexans ref. 10009423
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 4
- Conductor cross-section: 6 mm²
Nexans ALSECURE® PLUS 4x10
Nexans ref. 10045374
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 10 mm²
Nexans ALSECURE® PLUS 4x16
Nexans ref. 10045377
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 16 mm²
Nexans ALSECURE® PLUS 4x25
Nexans ref. 10045379
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 25 mm²
Nexans ALSECURE® PLUS 4x35
Nexans ref. 10045383 - Country ref. 01272377
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 35 mm²
Nexans ALSECURE® PLUS 4x50
Nexans ref. 10045400
- Packaging: Cut to length (m)
- With Green/Yellow core: No
- Number of cores: 4
- Conductor cross-section: 50 mm²
Nexans ALSECURE® PLUS 5G10
Nexans ref. 10045388
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 10 mm²
Nexans ALSECURE® PLUS 5G16
Nexans ref. 10045389
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 16 mm²
Nexans ALSECURE® PLUS 5G25
Nexans ref. 10045390
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 25 mm²
Nexans ALSECURE® PLUS 5G35
Nexans ref. 10009469
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 35 mm²
Nexans ALSECURE® PLUS 5G6
Nexans ref. 10045387
- Packaging: Cut to length (m)
- With Green/Yellow core: Yes
- Number of cores: 5
- Conductor cross-section: 6 mm²
Description
Description
Standards
-
ProductIEC 60228; NBN-IEC 502-NAD
-
TestNBN 713-020; NBN C30-004 cat. F2
Application
Nexans ALSECURE® PLUS and Nexans ALSECURE® PREMIUM cables are designed to be used in safety systems (emergency lights, warning systems, fire fighting equipments, etc ...) in all premises open to the public (concert hall, theaters, cinemas, department stores, hospitals, schools, etc ...), in high-rises buildings, in tunnels, in industries.
Nexans ALSECURE® PLUS and Nexans ALSECURE® PREMIUM cables are fire resistant and fire retardant, low smoke and halogen free. In the event of fire, emitted gazes are non corrosive and have a very low toxicity.
Installation
Nexans ALSECURE® PLUS and Nexans ALSECURE® PREMIUM cables will be installed in accordance with the current regulation.
Nexans ALSECURE® PLUS and Nexans ALSECURE® PREMIUM cables have to be protected against direct sun lighting when it used outside
In case of laying between 0°C and -10°C, warm up the cables in a heated room 48 hours minimum before installation.
Fire performance
- Fire resistant according to NF C 32-070 Cat. CR1, resistance fire test EFECTIS SECURISE
- Fire retardant according to IEC/EN 60332-3-24, IEC/EN 60332-1-2, NF C 32-070 Cat. C1 & C2
- Low smoke : IEC/EN 61034, NF C 32-073
- Halogen free : IEC/EN 60754-1, NF C 32-074
- Low corrosivity : IEC/EN 60754-2, NF C 32-074
COMPLEMENTS
Core identification
(in accordance with european harmonization HD 308 S2)
1 x : white
2 x : brown - blue
3 x : brown - black - grey
3G : brown - blue - green/yellow
4 x : brown - black - grey - blue
4G : brown - black - grey - green/yellow
5 x : black cores with printed numbers
5 G : blue - brown - black - grey - green/yellow
7 cores and above : white cores with printed numbers
Type Approval
LCIE: Laboratoire Central des Industries Electriques
Current rating Capacities
The data are indicated for continuous duty operation and apply to:
- Maximum conductor temperature = 90 °C
- Nominal frequencies = 50 or 60 Hz
- One cable in free air (on perforated trays)
- Ambient temperature = 30 °C
Data recording from IEC 60364-5-52 or NF C 15-100
Voltage Drop
The data are based on Cos ø = 0.8
Minimum bending Radius
r = 6 x cable outer diameter
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Selling & delivery Information
Marking
Solid class 1 cables :
ALSECURE PREMIUM "nx(or G )S" mm2 NF-USE 336 300/500V NF C 32-310 CR1/C1 SECURISE EFECTIS FRANCE
Stranded class 2 cables :
ALSECURE PLUS "nx(or G)S" mm2 NF-USE 279 300/500V NF C 32-310 CR1/C1 SECURISE EFECTIS FRANCE week / year
n: number of cores S: conductor cross-section (mm²)
G: with Green/Yellow x: without Green/Yellow
